TECHINICAL DETAILS
LENGTH 500 mm
WIDTH 700 mm
HEIGHT 1370 mm
STEEL PIN Ø 10 mm.
ROLLING WHEEL Ø 70 mm.
ROLLING WHEEL SPEED 70g./min.
MIN. DIAMETE R WEDDING RING 15 mm
MAX. DIAMETER WEDDING RING 24 mm
MIN. WIDTH WEDDING RING Ø 2 mm.
MAX. WIDTH WEDDING RING Ø 5 mm.
AIR COMPR ESSED PRESSURE 4 - 5 Atm.
POWER 0,37 Kw FEEDING 380 V.
WEIGHT 150 Kg.

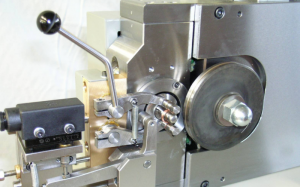

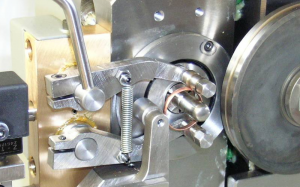

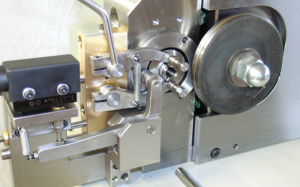

The manual rolling mill is designed to make wedding rings half - round and flat. A particular control system allows to automatically stop the machine in the previously set size. The machine has an original pneumatic - oil system in order to obtain a seri es of wedding rings with the same previous set size diameter, only charging the blank and pushing the running push button.
