TECHNICAL DETAILS

HEIGHT 1600 mm.

WIDTH 800 mm.

LENGTH 800 mm.

MIN. WEDDING RING DIAMETER 13 mm.

MAX. WEDDING RING DIAMETER 23 mm.

MAX. WEDDING RING WIDTH 13 mm.

DIAMETER OF THE ROLLING SHAFT 8 OR 10 mm.

DI AMETER OF THE ROLLING WHEEL 115 mm.

PRESSURE COMPRESSED AIR 5 Atm.

FEEDING 380 + N + T POWER 2 kW.

WEIGHT 380 Kg.

WEIGHT WITH PACKING 480 Kg. SIZE OF THE PACKING 1200 x 1100 x H2050

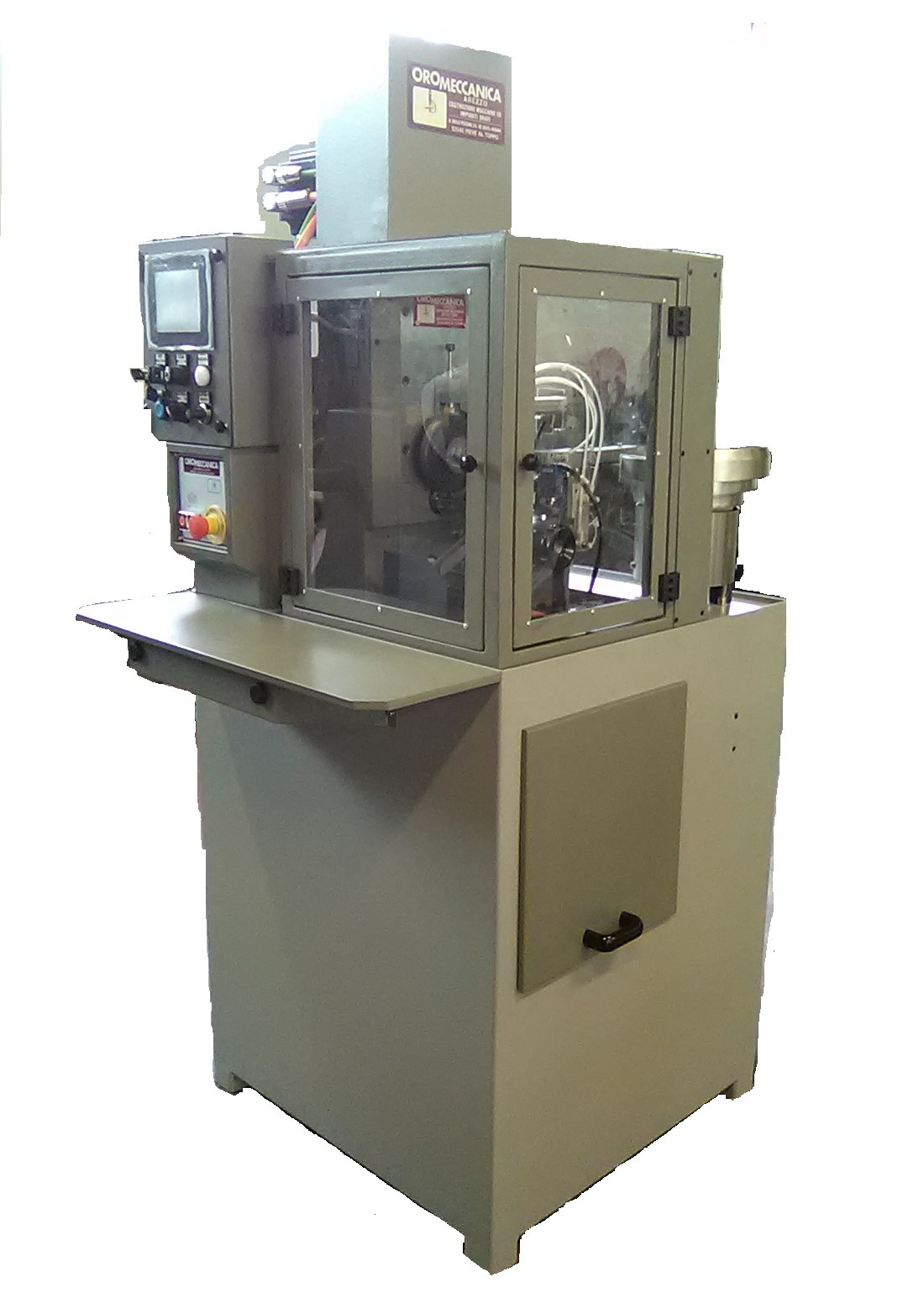

This machine has been specifically planned for producing wedding rings of different shapes ( half-round, flat etc. ) with the internal d i am e ter fixed in advance. For this purpose, we have used, as electronic plant of check, a gearcase (COMPUTER), which is able to control all the m a chine fun c- tions. All this allows to check the internal diameter of the wedding ring, the number of the wanted pieces and the co m plete working cycle ( including the lood and the unlood of the pieces ). The machine workings are essentially two : automatic and manual. When you use the m a chine in the manual working, It is possible to pr o gram only one size and it is u n provided of the automatically lood cycle of the piece. When you use the machine in the automatically working, it is possible to program more than one size to work and the number of the pieces for each size you want. This cycle is completely controlled from the computer, so that, once you put the information and the pieces in the automatically looder, you do not need the operator. W hen the working phase is finished, the machine will stop itself.
