TECHNICAL DETAILS

HEIGHT 1320 mm

LENGTH 1650 mm

WIDTH 580 mm

PROFILING SPEED VARIABLE FROM 0 TO 4 Mt/1'

MIN. THICKNESS TO BE PROFILED 0,30 mm

MAX. THICKNESS TO BE PROFILED 1,10 mm

MIN. DIAMETER TUBE 6 mm

MAX. DIAMETER TUBE 14 mm

FEEDING 380 Volt + N. POWER 1,2 kW

WEIGHT 550 Kg WEIGHT WITH PACKING 660 Kg

SIZES OF THE PACKING 770x2000xh1540

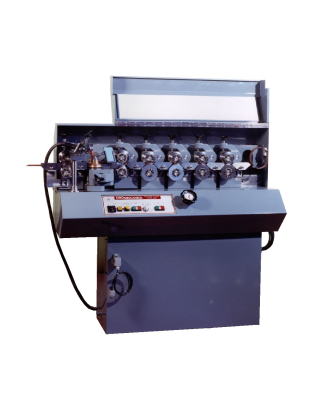

This machine allows to obtain from the starting strip, by using a special equipment, tubes of different diameters, soldered on th e edges. The profiling is done by passing the strip between the following pairs of wheels which have a special designed profile. The soldering of the edges is done positioning the soldering nozzle, by a special adjustable arm, in relation to the rollers out of bronze which close the two edges. This pair of rollers is equipped with a liquid circulation, cooling system. To allow the variation, e ven micrometric, of the thickness of the strip, each profiling rolling pair is equipped with a simple screw system which allows the re gulation by merely rotating an apposite hand - wheel. The bed - plate of electro soldered steel sheet, allows a maximum accessibility t o all the members of the machine and contributes with its structure to a silent running. The machine as a unit appears compact, in relation to its high performances. The transmission of the movement to the profiling roller pairs, is obtained by a "cascade gears" system. All the rotating parts of the machine are realized by sphere or roller bearings, which are pre - lubricated and wat ertight, and there is no need of maintenance. The machine motorization is carried out by a geared - motor unit controlled by an electronic vari a tor, which allows to adjust the speed of the rollers.
