TECHNICAL DETAILS
HEIGHT 1250 mm
WIDTH 700 mm
LENGTH 850 mm
MAX. CUT WIDTH 100 mm
MAX. PLATE THICKNESS 0,80 mm
CUT SPEED 10 Mt/1’
DIAMETER OF THE SHEAR 80mm
POWER 0,75 kW FEEDING 380 Volt
WEIGHT 130 Kg
WEIGHT WITH PACKING 180 Kg

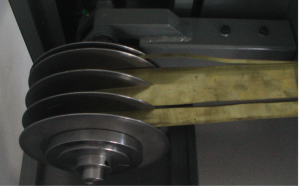

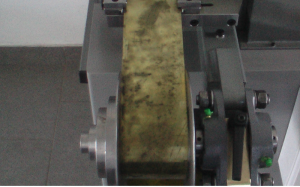

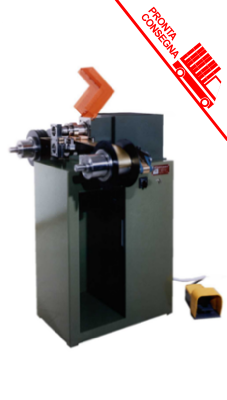

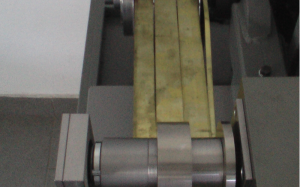

This machine has been realized for cutting stripes of different measures with the necessity of changing the bundles of blades. The machine is equipped with a plate-guide which facilitates the linearity of the cut. All the mechanical parts of movement are made of hardened and rectified steel, allowing in this way to obtain plates with both the sides trimmed extremely precise. The transmission of the movement is given by a moto-reducer directly put on the shears holder shafts, which can be operated with pedal at impulses or continually with the switch.
