TECHINICAL DETAILS
CYLINDER IN CARBIDE Ø 120
BAND IN CARBIDE L= 40 mm.
SPEED FROM 0 TO 30 Mt/1’ ADJUSTABLE
MINIMUM STRIP THICKNESS 0.04 mm.
LENGTH 1150 mm.
WIDTH 1000 mm.
HEIGHT 1450 mm.
POWER 5 kW. FEEDING 380 V. THREE - PHASES NET
WEIGHT 500 KG. GROSS WEIGHT 600 KG. APPROX

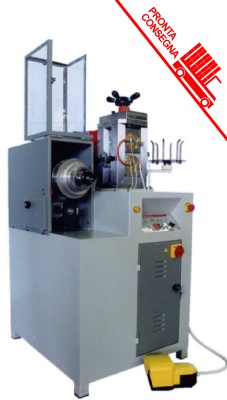

The rolling mill wire squeezer ø 120 is a machine projected to obtain squeezed wires of high precision. These wires are used to make chains like “venetian” , “fox tail” or any other use that require flat wires with measure extremely precise. The main features that distinguish this machine are:
- Supports holder cylinder in brass with forced lubrication
- Cylinde rs cooling by water recycling
- Coiling winder able to contain an expandable reel and reels of measures from DIN 125 to DIN 200, with adjustable step to obtain a perfect winding of the squeezed wire on the same reel.
This winder group is moved by an alternating current motor fed by a special electronic converter used to grant the co n tinuous regulation of the coiling speed. This regulation is made by a drawing lever compensator that control co n stantly the wire squeezed tension to coil.
- Adjustable decoiler to contain the skeins of wire.
- Stop device of the machine in case of wire braking
- Micrometric adjusting of the distance from the cylinder by visualizer - Speed adjustment by potentiometer
