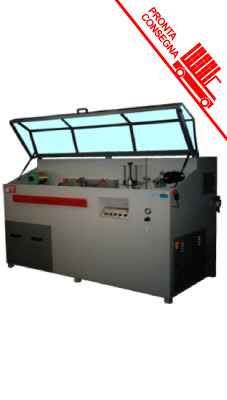

TECHNICAL DETAILS
Wire drawing passages N. 14
Speed of drawing 0 – 550 m/min
Diameter Max wire in entrance 2 mm
Diameter Min wire in exit 0,10 mm
Dimension of the skein in entrance ext. Ø 200 mm or spool DIN 200
Dimension of the skein in exit with a reel ext. 150 mm
Spool dimension in exit DIN 125
Power main motor kW 15
Motor Power of the winder kW 0,75
Motor Pump power kW 0,15
Feeding 380 V
Height 1430 mm Length 2260 mm Width 1150 mm Weight 1100

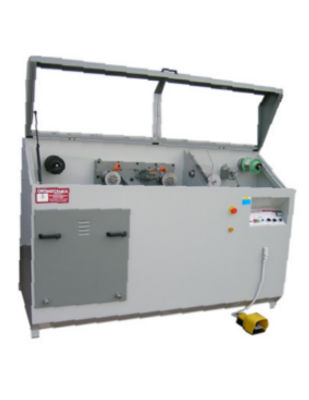

TECHNICAL DETAILS
HEIGHT 1340
LENGTH 1970
WIDTH 1090
PASSAGES OF WIRED RAWING OPERATIONS N. 11
DRAWING SPEED 0 - 540 mt/1'
MAXIMUM IN GOING DIAMETER 0.80 mm.
MINIMUM COMING OUT DIAMETER 0,028 mm.
SIZES OF THE IN GOING AND COMING OUT HANKS EXTERNAL DIN 125.
MAIN MOTOR POWER HP 15.
MOTOR POWER COLLECTING AND REELING CONE HP 0,5
MOTOR POWER PUMP HP 0,5.
FEEDING 380 V.
WEIGHT 850 Kg. WEIGHT WITH PACKING 1030 Kg

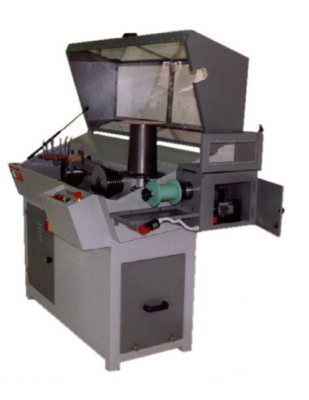

TECHNICAL DETAILS
HEIGHT 1240 mm
WIDTH 550 mm
LENGTH 1360 mm
PASSAGES OF DRAWING N. 6
DRAWING SPEED FROM 0 TO 90 Mt/1°
MAX. D IAMETER INGOING WIRE 2 mm
MIN. DIAMETER OUTGOING WIRE 0,20 mm
REEL WITH ADJUSTABLE CLUTCH
POWER MAIN MOTOR 3 Hp
POWER MOTOR PUMP 0,5 Hp
FEEDING 380 Volt
WEIGHT 300 Kg WEIGHT WITH PACKING 460 Kg
SIZES OF THE PACKING 1600 x 800 x h1480
TECHNICAL DETAILS
HEIGHT 1240 mm
WIDTH 550 mm
LENGTH 1360 mm
PASSAGES OF DRAWING N. 6
DRAWING SPEED FROM 0 TO 90 Mt/1°
MAX. DIAMETER INGOING WIRE 2 mm
MIN. DIAMETER OUTGOING WIRE 0,20 mm
REEL WITH ADJUSTABLE CLUTCH
POWER MAIN MOTOR 3 Hp
POWER MOTOR PUMP 0,5 Hp
FEEDING 380 Volt
WEIGHT 300 Kg WEIGHT WITH PACKING 460 Kg
SIZES OF THE PACKING 1600 x 800 x h148
TECHNICAL DETAILS
HEIGHT 1,200 mm.
WIDTH 850 mm.
LENGTH 1,750 mm.
SPEED OF WIREDRAWING ADJUSTABLE FROM 0 TO 25 mt./1'
MAX DIAMETER OF SOLID WIRE TO DRAW 7 mm.
WIREDRAWING REDUCTION OF 20% DIAMETER OF THE WINDING REEL Ø 650 mm.
POWER 6 kW. FEEDING 380 volt.
WEIGHT 720 kg. WEIGHT WITH PACKING 860 kg
